NEWWe are now Sturm, Ruger & Company® Certified to work on your Ruger Mini 14® & 30® Rifle's. You will no longer need to send your rifle to Ruger for restricted factory work. We can handle any factory replacement part work you are needing from firing pins to trigger components and more..... *All factory warranty issues will still need to be handled through Ruger® for now. Please keep in mind that we have been at the cutting edge of technology when it come's to the Mini 14® and Mini 30® rifle for many years.


Ruger Mini Barrel Conversions & New Rifle Packages
PRICE LIST FOR RUGER MINI 14® & RUGER MINI 30®

∗All conversions have an Accuracy Guarantee when Bedded

∗ Rifles pictured with available options toward middle of this page. ∗

Hello and welcome to our Ruger Mini conversion page. This page is long but filled with a lot of information about our accuracy conversions. Back when we started, we made it our goal to achieve the most accurate Mini conversions on the planet, bar none. We will be up front with you. We are not cheap! If you want a cheap conversion remember you get what you pay for. Do you want a Smith that does a few Mini’s a year with a prefabricated barrel, then installs the barrel and hopes it delivers the accuracy? Or do you want a company that makes the Mini their business and guarantees accuracy?! Cheap is not always better when it comes to accuracy. We know what the Mini’s weaknesses are through trial and error, you can't cut corners when it comes to accuracy! The Mini is well built and is worth every penny you spend with us to upgrade the rifle to match grade accuracy. We will review some comparisons between the popular AR 15 system and the Mini 14® system below.

The Mini 14® rifle system is a close copy of the Grand's receiver, bolt, and trigger group system. I don't have to tell you that it ends there, but they are still very similar. The Mini is a very tough, well built system as it is. It will take all the abuse you can dish out and still be depended on to function when you need it. Here is a quote from General George Patton:"The M1 is the best battle weapon ever developed." The outcome of WW II proves this rifle to be battle worthy. That is also why even to this very day our troops in Iraq & Afghanistan prefer the dependability of the M14 which is the M1's predecessor over the AR 15! But you say to yourself, why put $600 plus into a rifle I only paid $500 for. Well below are some good reasons. Not to mention, have you priced a new M14 lately? Yes, it does shoot a 308 Winchester compared to a 223 Remington. But it also weighs more, cost more and doesn't come with an accuracy guarantee unless you pay extra. Don't feel stuck with the 223 caliber either, we do offer other calibers to suit your needs.

MINI 14 & AR15 Comparisons

Mini 14 - No hot gases are dumped into the bolt. So the bolt is not over come by excessive heat! Also there is no carbon to build up and lock up the bolt!

AR15 - Hot gases are dumped into the bolt to say the least and carbon will build up if not regularly cleaned causing a malfunction and or cease to operate condition.

Mini 14 - All steel receiver and case hardened to a thickness of at least .020"

AR15 - 75% aluminum alloy with the critical parts steel

Mini 14 - Open bolt design is a close copy of the M14. The open bolt is very forgiving when it comes to dirt, dust or sand. The rifle clean or dirty just keeps ticking and ticking.

AR 15- Closed bolt design. Just ask our troops about the plastic baggies they need to use to keep the sand from jamming up there rifles.

Mini 14 - Self-cleaning gas system no buffer tube to collect moisture or dirt and lock up the buffer system.

AR 15- Must be field stripped to clean trigger compartment, Buffer system, Bolt & carrier and gas tube system.

Mini 14 - compact, versatile, and doesn't take up much space.

AR15 - Large bulky

Mini 14 - Field strips in seconds. Pop the trigger guard and the rifle practically dismantles it self.

AR 15- Definitely slower to disassemble.

Mini 14 - Now here the AR has an advantage over the Mini. Out of the box ACCURACY!

AR 15 - Out of the box ACCURACY!

Mini 14 - But here we can help! We can turn your Mini 14 into a rifle that will shoot right next to an AR15 after one of our conversions is completed. Now that we have discussed the pros and cons of the rifles you would have to say the Mini definitely has some advantages and we can take care of the disadvantages!

Accuracy Systems, Inc.

Accuracy Guarantee Specifications Chart

 NOTE: All Guarantees are capable of better accuracy than listed:

 Sub 1 MOA @ 100 Yards:
Barrel Diameter - .875" or 1" Bull
Barrel Length - 24"
Barrel Manufacture - Proprietary
Barrel Package - Ultra Match     $799.99
Barrel Calibers - 17 Rem., 204 Ruger, 222 Rem., 223 Rem., 6.5 Grendel, 6mm PPC.

 Sub 1.25 MOA @ 100 Yards:

Barrel Diameter - .750", .875" or 1" Bull
Barrel Length - 21" thru 23"
Barrel Manufacture - Proprietary
Barrel Package - Premium Match     $799.99
Barrel Calibers - 17 Rem., 204 Ruger, 222 Rem., 223 Rem., 5.56 x 45 NATO, 6mm x 45, 6.8 REM SPC, 300 Black Out, 7.62 x 39.

 Sub 1.50 MOA @ 100 Yards:
Barrel Diameter - .750"
Barrel Length - 16.5" thru 20"
Barrel Manufacture - Proprietary
Barrel Package - Value Premium     $749.99
Barrel Calibers - 223 Rem., 5.56 x 45 NATO, 6mm x 45, 6.8 REM SPC, 300 Black Out, 7.62 x 39.

 Sub 1.75 MOA @ 100 Yards:

Barrel Diameter - .625"
Barrel Length - 16.5" Thru 18"
Barrel Manufacture - Proprietary
Barrel Package - Conservative     $649.99
Barrel Calibers - 223 Rem., 5.56 x 45 NATO.
(MOA = 1.042" @ 100 Yards)

Mini 14® Barrel Conversion Prices. You supply the rifle.

Ultra Match Premium Air Gauged Barrel Stainless steel Ultra Match Air Gauged Barrel. Complete Package $799.99

  1. Proprietary Barrel - Button Rifling Air Gauged 416 Stainless or 4140 CM Blued Steel.
  2. Barrel diameters- 1" Bull, .875" Varmint, .750" medium.
  3. Length from 21" to 24"
  4. Twist rate to be determined by us depending on the weight & caliber of bullet. Finish on barrel satin matte or brushed.
  5. 3 point steel bedding pillars
  6. 11° Target crown
  7. New operating rod where needed or upgrade yours
  8. True bolt & action if needed
  9. 3.5# match trigger with take up adjustment screw.
  10. New over sized hand guard to fit thicker barrel
  11. New gas block, sling swivel, gas pipe and operating rod cup bushing
  12. Sub -1.25 MOA accuracy guarantee (1.042" = 1 MOA) 3 shot group @ 100 Yards with factory selected ammo. (Capable of Sub-MOA accuracy)
  13. Sub -1 MOA accuracy guarantee for 1" or .875" Diameter barrels 24" long. (1.042" = 1 MOA) 3 shot group @ 100 Yards with factory selected ammo.
  14. Calibers available @ this price. .223 Rem., 5.56 NATO .222 Rem, .204 Ruger, 6mm X .223, .17 Rem., 300 Black Out. Others caliber's call for pricing and availability.

Value Premium Barrel Blued steel Value Premium Barrel. Complete Package $749.99

  1. Proprietary Button rifled barrel - 416 stainless or 4140 CM Blue steel.
  2. 16.5" or 18.5" Length by .750" diameter barrel selection.
  3. 1 x 9 twist rate .223Rem.or 5.56 NATO
  4. 3 point steel bedding
  5. .750" gas block upgrade
  6. 11° Target crown
  7. 3.5 pound two stage trigger
  8. Machine work & stock fitting
  9. Uses your hand guard fitted to our barrel
  10. True bolt & action if needed
  11. Sub -1.50 MOA accuracy guarantee (1.042" = 1 MOA) 3 shot group @ 100 yards with factory selected ammo. ( Capable of Sub-MOA accuracy)

Conservative Package Conservative Barrel. Complete Package. $649.99

  1. Proprietary Button rifled barrel - 416 Stainless or 4140 CM Blue steel.
  2. 16.5" or 18.5" length x .625" diameter barrel.
  3. .625" gas block (We keep your gas block)
  4. 4.5 pound trigger 2 stage
  5. Machine your slide and refit your hand guard
  6. 11° Target crown
  7. 3 Point pillar bedding
  8. Satin or brushed finish Barrel
  9. 223Remington or 5.56 NATO Chamber.
  10. Sub - 1.75 MOA accuracy guarantee 3 Shot group @ 100 yards with factory selected ammo. (Capable of Sub 1.5 MOA accuracy)


Mini 30™ & Mini 14/6.8REM SPC
Barrel Conversion Prices.You supply the rifle.

Mini 30 Barrel Conversion Prices Premium Match Air Gauged Barrel. Complete Package $799.99

  1. Proprietary Barrel - Button Rifling Air Gauged 416 Stainless or 4140 CM Blued Steel.
  2. Barrel diameters- 1" Bull, .875" Varmint, .750" medium.
  3. Length from 18.5" to 24"
  4. Twist rate to be determined by us depending on the weight & caliber of bullet. Finishes on barrels are satin or brushed stainless. Black barrels are matte.
  5. 3 point steel bedding pillars
  6. 11° Target crown
  7. New operating rod where needed or upgrade yours
  8. True bolt & action if needed
  9. 3.5# match trigger with take up adjustment screw.
  10. New over sized hand guard to fit thicker barrel
  11. New gas block, sling swivel, gas pipe and operating rod cup bushing
  12. Sub 1.5 MOA accuracy guarantee for 7.62 x 39 & 6.8 SPC unless you order a 1" or .850" x 24" barrel which then would be a 1.25 MOA accuracy guarantee. All other caliber's below ordered in a 1" or .875" Diameter barrel 24" long would be 1 MOA and 16.5" to 20" a 1.5 MOA accuracy guarantee 3 shot group @ 100 yards with factory selected ammo or as stated when ordered. Of course all barrels are capable of better accuracy with the right ammo.
  13. Calibers available @ this price. (7.62x39 - 310 Bore, 7.62x.39-308 Bore, 6.5 Grendel, 6mm PPC, 6.8 SPC, 22PPC. Others caliber's call for pricing and availability.

*All above conversions have an Accuracy Guarantee when Bedded*


∗∗∗ New rifle packages below keep moving down the page ∗∗∗

NON PACKAGE BARREL PRICING
Premium air gauged 416 stainless (installed) $499.95
Barrel only short chamber (223, 1x9 only, 20”x.750”) $399.95

Premium air gauged 4140 CM Blue (installed) $499.95
Barrel only short chamber (223, 1x9, 20”x.750” only) $399.95

∗∗∗∗ Gas block not included. They will need to be purchase separately for the above barrels. Add $75.00 for slide machining & fitting to above (barrel only) pricing if we install. Click here for gas block prices.



Mini 14/30 Cartridge Line Up
Mini 14/30 Cartrigge Line Up
1) 17 Fireball
2) 17 Remington
3) 204 Ruger
4) 5.45 x 39MM
5) 5.56 NATO

6) 223 Remington
7) 6MM x 45MM

8) 6MM PPC
9) 25 Boomer

10) 6.8 Rem. SPC
11) 6.5 Grendel

12) 7.62 x39
13) 300AAC Blackout
14) 223 Wylde (No Picture)
If you do not see one ask us if it is available.

Here are some pictures that speak louder than words.
You compare our workmanship and products to other Mini conversion companies and you decide.

compare our workmanship and products to other Mini conversion companies
  1. Competitors Bedding: Sloppy and prone to cracking, will breakdown over time. Still relies on trigger guard to hold action in the stock
  2. Accuracy Systems, Inc. Bedding: Clean looking! We use three steel pillars (∗ see above) epoxy into the stock. Then we use three steel screws to bolt the receiver to the stock. Now you can take your receiver out as many times as you like not effecting the bedding and it always remains strong - $125.00.

heavy barrel

There are other companies out there that actually call this their heavy barrel. Stay clear you are just asking to be let down. This is one that has been sent to us to replace with our true heavy barrel. This customer's out his $350.00. You will pay more with us but you will be satisfied with what you get back. You pay for what you get.

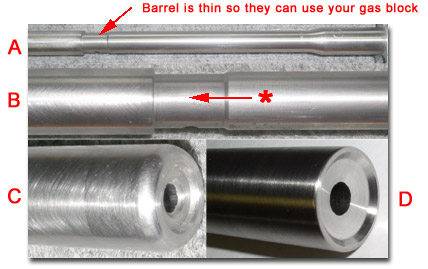

claimed heavy barrel
  1. Competitor's "claimed heavy barrel". They give you a discount and take a short cut to do it. Notice that where the gas block goes the barrel is very thin. This is a harmonic weak spot prone to barrel vibration! We do not do this.
  2. Close up of the competitor's thin spot. This other company saves you $85.00 by using your gas block, but it will cost you in accuracy.
  3. Competitor's target crown. Notice that the crown is not sharp and crisp. The barrel also looks like the end of a baseball bat.
  4. Our 11° Recessed target crown is sharp and crisp. This is a must for accuracy! The muzzle also looks more like a gun barrel.
1 inch thick chamber
  1. Our chamber is 1" thick for 4". The competitor’s is.900" for 2". Which chamber do you think is more rigid?
  2. This is the thinnest point of our barrel and it is still .750" diameter. No thin spot in this barrel!!
  3. Very small shoulder to give the gas blocks support.
Pictured Rifle Conversions

All rifles below are examples of what can be built on your Supplied rifle. Remember we can mix, and match any item seen below to accommodate your needs and budget.

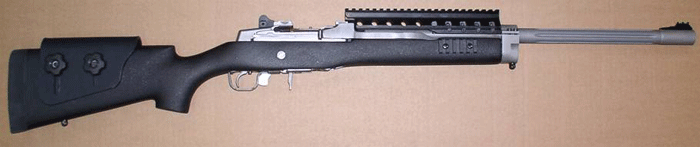

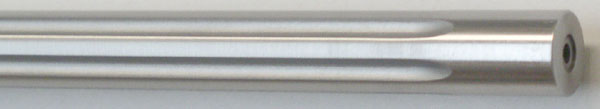

Barrel fluting & quiet brake

Barrel fluting Add $179.99 & quiet brake Add $179.99

Click Here for Ruger Mini Ranch Rifle Conversion Packages

Click Here for Ruger Mini Tactical Rifle Conversion Packages

UMSS Match Rifle

UMSS Match Rifle

  1. 24”x 1” Bull barrel in the following caliber’s, 17Rem, 223 Rem & 204 Ruger & more.
  2. 3 point steel bedding, 3.5# single or two stage trigger, birch wood stock, factory rings & one 5 round magazine.
  3. Guaranteed to shoot under a MOA 3 shot group @ 100 yards.

Order #102 - Built on your rifle action $799.99


UMSS 1 inch Bull Long Range Barrel

Sub MOA
26" x 1 Bull with Handguard
11 Pounds, No Scope Rail

UMSS 1 inch Bull Long Range Barrel

Sub MOA
24" x 1 Bull without Handguard
10 pounds, with Scope Rail

  1. UMSS 1" Bull Long Range Barrel
  2. New Anshutz Style Varmint Stock
  3. 2.5# Trigger & Bedding
  4. 1" SS Gas block
  5. Blue Printed Action & 11 degree target crown
  6. With Rail - Add $73.00

Order #103 - Built on your rifle action $1159.95

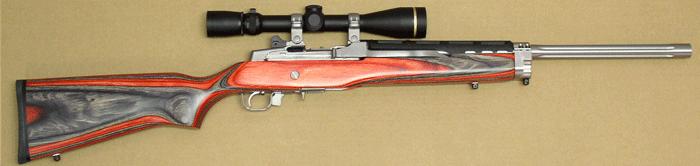

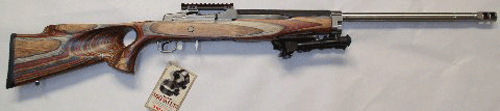

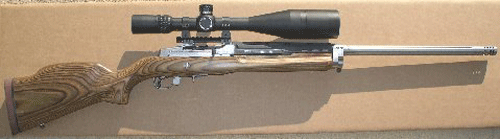

Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #104 - Built on your rifle action $1159.99


return to top

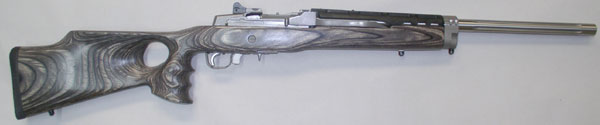

Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #105 - Built on your rifle action $1609.96


return to top

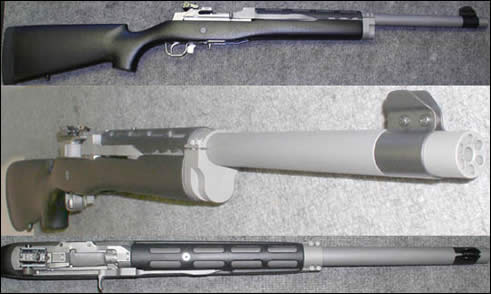

Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #106 - Built on your rifle action $1089.98


return to top

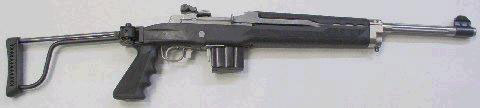

Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #107 - Built on your rifle action 1119.98


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #108 - Built on your rifle action 1339.98


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #109 - Built on your rifle action $799.99


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #110 - Built on your rifle action $799.99


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #111 - Price on request


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #112 - Built on your rifle action $989.98


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #113 - Built on your rifle action $1473.95


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #114 - Built on your rifle action $1419.97


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

or

Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #115 - Built on your rifle action $1319.97


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #116 - Built on your rifle action $1449.97


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #117 - Built on your rifle action $1509.97


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle
Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #118 - Built on your rifle action $1309.95


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

Order #119 - Built on your rifle action $1379.98


return to top


Accuracy Systems Inc Custom Mini 14 Mini 30 Rifle

UMSS Barrel 20” x .875”
(shown 7.62 x 39 caliber)
Other calibers available.

  1. .875” gas block & parts kit
  2. See thru rail with front fire sight
  3. 3 point steel bedding
  4. Sub-MOA accuracy guarantee @ 100 yards three shot group with selected factory ammo.
  5. 3.5 # trigger
  6. Side accessory rail
  7. Barrel fluting
  8. Camo Laminate stock

Order #120 - Built on your rifle action $1509.96


return to top


6.8 MM x 47 REMINGTON SPC BALLISTICS

BULLET VELOCITY (fps) ENERGY (ft-lbs.)
  Muzzle 100 yd. 200 yd. 300 yd. Muzzle 100 yd. 200 yd. 300 yd.
115-gr. FMJ 2,800 2,523 2,202 2,017 2,002 1,622 1,250 1,039
115-gr. BTHP 2,800 2,535 2,285 2,049 2,002 1,644 1,345 1,075
115-gr. MK 2,800 2,535 2,285 2,049 2,002 1,644 1,345 1,075
∗ 24-inch Barrel ∗

The 6.8mm Remington SPC
By Chuck Hawks

The inadequacies of the 5.56mm NATO as a service rifle cartridge are well documented and have inspired many suggestions regarding possible replacements (some on this web site). Apparently someone in the U.S. Special Operations Command also realized the need for a more potent round and initiated work on a new cartridge designed to work in the M16 action.

The new .270 caliber (6.8mm) cartridge is the result of at least a two year cooperative effort between Special Operations, the Army Marksmanship Unit, and Remington. Various calibers from .22 to .30 were tested before settling on a standard .277" diameter bullet, the same bullet diameter made famous in the .270 Winchester

Remington is offering four 6.8mm SPC factory loads, all with 115 grain bullets. These include two target loads, a Core-Lokt Ultra hunting load, and a Metal Case military-type load. No varmint load is included. The four factory loads all have a muzzle velocity (MV) of 2800 fps and a muzzle energy (ME) of 2002 ft. lbs. from a 24" test barrel. At 100 yards the metal case bullet (BC .325) has a remaining velocity of 2523 fps and energy of 1625 ft. lbs. At 200 yards the velocity is 2262 fps and the energy 1307 ft. lbs. And at 300 yards the velocity is 2017 fps and the remaining energy 1039 ft. lbs. These figures are taken from Remington's 2004 catalog.

The trajectory of the metal case bullet looks like this: +1.2" at 50 yards, +2.7" at 100 yards, + 2.8" at 150 yards, +1.4" at 200 yards, -3" at 267 yards, and -6.6" at 300 yards. The maximum point blank range (+/- 3") is thus 267 yards. These figures are computed for a rifle with a telescopic sight mounted 1.5" over the bore. This, just like the Army claimed, is similar to the trajectory of the .308 with a 150 grain bullet.

The lighter weight .277" varmint and hunting bullets will presumably be the most popular choices in the 6.8mm SPC, and the latter are not thick on the ground. Suggested examples include the 90 grain Speer HP varmint bullet, 100 grain Barnes X-Bullet, 115 grain Sierra HPBT, 115 grain Remington Core-Lokt Ultra, and 120 grain Barnes X-Bullet.

Fast to medium burning rifle powders such as RL-7, IMR 4198, IMR 3031, IMR 4895, H4198, H322, H335, and Benchmark are indicated in the 6.8mm SPC. The MAP of the 6.8mm SPC appears to be about 55,000 PSI.

Here is some reloading data from the Hodgdon Powder Company:

Starting Load - 90 grain Speer HP bullet, 26.0 grains of H4198 powder, MV 2810 fps, 47,700 PSI.
Maximum Load - 90 grain Speer HP bullet, 28.6 grains of H4198 powder, MV 3012 fps, 54,000 PSI.

Starting Load - 100 grain Barnes X-Bullet, 27.0 grains of H322 powder, MV 2502 fps, 37,700 PSI.
Maximum Load - 100 grain Barnes X-Bullet, 30.0 grains of H322 powder, MV 2803 fps, 52,300 PSI.

Starting Load - 115 grain Sierra HPBT bullet, 26.0 grains of H322 powder, MV 2421 fps, 43,500 PSI.
Maximum Load - 115 grain Sierra HPBT bullet, 28.2 grains of H322 powder, MV 2608 fps, 53,300 PSI.

These loads were chronographed in a 24" test barrel using Remington cases and Remington 9 1/2 primers.

Note: A full length article about the 6.8mm SPC can be found on the Rifle Cartridge Page.

PRICES SUBJECT TO CHANGE WITH OUT NOTICE!

Friday, September 19, 07:49:08 AM Mountain Time

Hours of operation are Monday thru Thursday 9 AM to 4:30 PM, Friday 8:30 AM to 12:30 PM Mountain Time Zone
(Closed Saturday & Sunday)

All prices stated in this web site are subject to change without notice.

Hosted, Maintained, Promoted, & Optimized for Search Engine Placement by Hosting Texas
Contact the Webmaster

Links - Site Map

OpticsPlanet.com - North Wood Shooting Sports - US Shooter - Ann Arbor Guns, Knives and Survival Gear - Cancer Insurance - Moore Radio - The Concealment Shop Inc. - Pistol Permit - Best Optics Your Outdoor Needs - Old Tree Gun Blanks - Gun Safes - Old Tree Gun Blanks - Safes - Fobus Holsters - Body Armor - Buy Shooting Supplies - Rocky Outfitters: - CorrosionX For Guns - NIC Industries - OutfitterPros.com - BargainTrophies.com - Gun Safes - Cross Hair Consulting - C.B. Hobbies: L & L Marine Maintenance Products - Airsoft & bb Guns - BROWNELLS - Mexico Beaches - Texas Whitetail Deer Hunting Ranch: - New Mexico Elk Hunting - Antelope Hunting -

Copyright © 2007 Accuracy Systems Inc.

8662605
